HERMetic Sampler A-2 is a precision-engineered portable restricted sampling system designed for representative sampling of crude oil, petroleum products, and other liquids in marine vessels, storage tanks, refineries, and petroleum terminals. Developed for applications where restricted sampling is authorized, the HERMetic Sampler A-2 provides a practical and reliable method for collecting liquid samples from specific locations within a tank.
The system is designed for connection to 2-inch HERMetic vapour control valves and is suitable for applications involving low- or high-viscosity liquids. The sampler can be equipped with different sampling bottles for zone, spot, running, and bottom sampling, providing operators with flexibility to obtain representative samples according to the tank and sampling requirements.

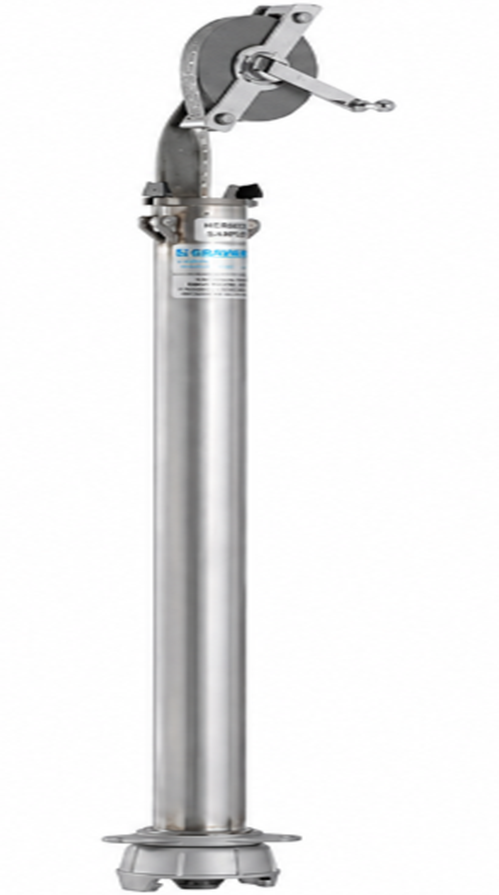

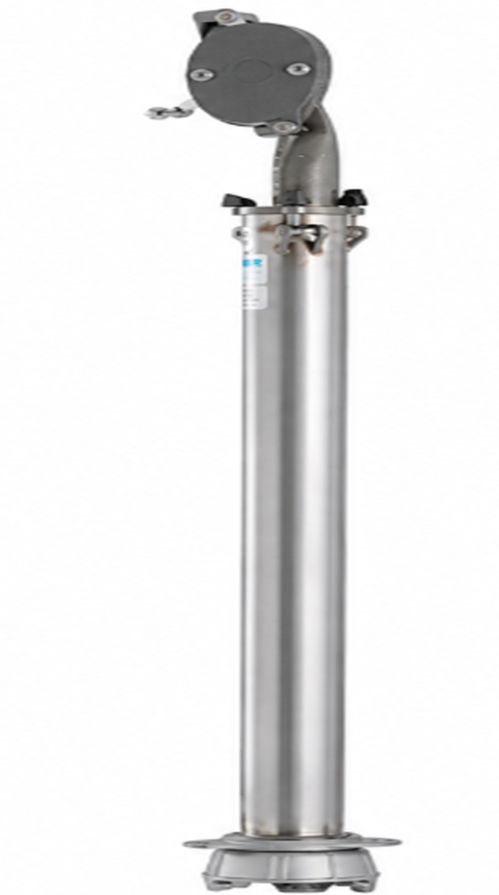

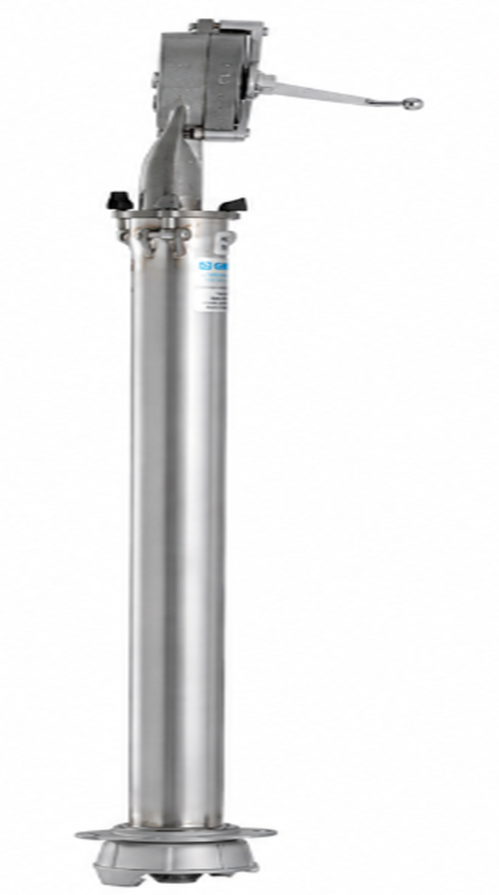

The HERMetic Sampler A-2 incorporates a graduated stainless-steel measuring tape, sampling bottle, sampler housing, viewing window, and quick-connect coupling in a robust portable assembly. It is particularly suitable for oil tankers, crude oil carriers, petroleum terminals, refineries, tank farms, custody transfer operations, inventory control, quality control, and pollution prevention applications.
Core Working Principle
The HERMetic Sampler A-2 operates by mounting the sampler housing onto a suitable 2-inch HERMetic vapour control valve installed on the tank. The sampling bottle is connected to the graduated measuring tape and lowered vertically through the tank to the required sampling position.
The sampling bottle moves through the liquid according to the selected sampling method. A zone sampling bottle can be used to collect a sample from the upper level of the tank, while spot, running, and bottom sampling bottles are available for different sampling requirements.
The graduated tape and viewing window allow operators to monitor and determine the sampling height during the operation. Once the required sample has been collected, the vapour control valve is closed and the liquid is transferred from the sampling bottle to a laboratory bottle under open conditions. A pump can be connected to accelerate the sample transfer when required.
The standard HERMetic Sampler A-2 uses a 30 m / 100 ft graduated tape, with longer tape configurations available according to the application. The sampling bottle capacity is approximately 0.5 litre, providing a practical sample volume for laboratory analysis and quality-control procedures.
Key Benefits
- Portable Restricted Tank Sampling
- Representative Liquid Sampling
- Suitable for Crude Oil & Petroleum Products
- Zone, Spot, Running & Bottom Sampling
- Suitable for Low & High Viscosity Liquids
- 2-Inch HERMetic Vapour Control Valve Connection
- Quick-Connect Coupling for Easy Installation
- Approximately 0.5-Litre Sampling Capacity
- Graduated Tape for Accurate Sampling Height Measurement
- Sampling Bottle Easily Removable & Exchangeable
- Rugged Construction for Marine & Industrial Environments
- Suitable for Custody Transfer & Inventory Control
- Supports Quality Control & Pollution Prevention
- ATEX Approved for Hazardous Area Applications
Intelligent Sampling Control for Operators
- Accurate Sampling Height Measurement: The graduated measuring tape and viewing window allow operators to determine the position of the sampling bottle inside the tank during the sampling operation.
- Multiple Sampling Methods: The A-2 supports different sampling requirements through zone, spot, running, and bottom sampling bottles, allowing operators to select the appropriate sampling method for the application.
- Restricted Sampling Operation: The sampler is specifically designed for applications where restricted sampling is accepted, providing a controlled method of obtaining representative tank samples.
- Easy Valve Connection: The A-2 is designed for connection to 2-inch HERMetic vapour control valves and uses a quick-connect coupling for convenient installation.
- Representative Tank Sampling: The sampling bottle can be positioned at the required tank level to obtain representative samples for laboratory analysis, quality control, custody transfer, and inventory applications.
Get in Touch
Looking for a reliable HERMetic Sampler A-2 supplier for your marine vessel, petroleum terminal, refinery, tank farm, or crude oil storage application?
Contact Swift Marine Tech Service for HERMetic Sampler A-2 supply, spare parts, sampling bottles, accessories, technical consultation, maintenance assistance, and worldwide delivery.
Our technical team can assist with selecting the appropriate A-2 configuration, sampling bottle, tape length, vapour control valve connection, replacement components, and accessories according to your application requirements.
HERMetic Sampler A-2: Advanced Restricted Portable Tank Sampling
The HERMetic Sampler A-2 is a professional portable restricted sampling device designed for representative sampling of liquids on marine vessels and in petroleum storage facilities. The system is particularly suitable for crude oil sampling and other applications where restricted sampling is authorized.
By combining a portable sampler housing, graduated measuring tape, interchangeable sampling bottles, viewing window, and 2-inch tank connection, the A-2 enables operators to collect liquid samples from specific locations within a tank without requiring a separate sampling system for each sampling method.
The system is particularly suitable for custody transfer, inventory control, quality control, and pollution prevention applications. Its ability to position the sampling bottle at different heights within the tank allows operators to obtain representative samples for subsequent laboratory analysis.
The HERMetic Sampler A-2 is designed for connection to a 2-inch HERMetic vapour control valve. The quick-connect coupling allows the sampler housing to be installed conveniently on the tank connection while maintaining the restricted sampling arrangement.
During operation, the sampling bottle is lowered vertically into the tank using the graduated measuring tape. The viewing window allows the operator to monitor the bottle position and determine the sampling height. This provides greater control when samples need to be collected from a particular level within the tank.
Different sampling bottles are available according to the required sampling procedure. The A-2 can be configured for zone, spot, running, and bottom sampling. A zone bottle is used for sampling a defined zone, while spot, running, and bottom bottles provide additional sampling options for different tank locations and procedures.
The standard zone sampling bottle provides a capacity of approximately 0.5 litre, providing a practical volume for laboratory analysis and quality-control testing. The standard graduated tape length is 30 m / 100 ft, with longer tape options available for suitable applications.
After the sample has been collected, the liquid is transferred from the sampling bottle to a laboratory bottle under open conditions after closing the vapour control valve. A pump can also be connected to accelerate the liquid-transfer process when required.
The instrument is constructed using AISI 316 stainless steel, brass, PTFE, and PVDF, with FKM gaskets for the A-2 configuration. This combination provides a robust construction suitable for demanding marine and petroleum sampling applications.
The HERMetic Sampler A-2 is designed for applications involving low- or high-viscosity liquids and is suitable for use where restricted sampling procedures are accepted. The system has a maximum tank overpressure specification of 0.3 bar and is approved for hazardous-area applications with ATEX II 1 G c IIB T6 certification.
The A-2 is widely applicable to oil tankers, crude oil carriers, petroleum terminals, refineries, tank farms, shore storage tanks, and marine cargo operations where representative restricted liquid sampling is required.
The system supports important applications including custody transfer, inventory control, quality control, pollution prevention, crude oil sampling, and laboratory analysis, providing operators with a practical method of obtaining samples from the required tank location.
The HERMetic Sampler A-2 complies with applicable industry requirements and is associated with recognized IMO, SOLAS, MARPOL, API, ISO, and OCIMF standards for the HERMetic marine sampling range. Honeywell also identifies ISO 3170 – Petroleum liquids – Manual sampling in the A-2 technical documentation.
