CLEANTRACK 1000B ODME – Advanced Oil Discharge Monitoring Equipment for Tanker Compliance
The CLEANTRACK 1000B Oil Discharge Monitoring Equipment (ODME) is an advanced monitoring and control system designed for oil tankers, chemical tankers, and vessels carrying applicable bio-fuel blends. It continuously monitors the oil concentration in discharged ballast and slop water and provides automatic control of the overboard discharge system.
The system works by drawing a representative sample through the sample pump and measuring cell, where the oil concentration is analysed continuously. The CLEANTRACK 1000B displays and records discharge data and can control the discharge arrangement when the measured oil concentration exceeds the applicable permitted limit, helping prevent non-compliant discharge.
The CLEANTRACK 1000B is designed for applications associated with MARPOL Annex I and relevant IMO requirements, including IMO MEPC.108(49) and MEPC.240(65). Applicable bio-fuel monitoring approvals and requirements may include MEPC.1/Circ.761 Rev.1 and MEPC.2/Circ.21, depending on the system configuration and vessel application.
Key Benefits
- Reliable Discharge Monitoring – Continuous oil concentration monitoring helps operators maintain controlled and compliant discharge operations.
- Simplified Maintenance – The detachable measuring cell and accessible system design can make calibration, servicing, and component replacement more efficient.
- Reduced Vessel Downtime – Flexible servicing and upgrade options help minimize disruption during maintenance, troubleshooting, and retrofit activities.
- Support for Modern Tanker Operations – Bio-fuel compatibility and upgrade capabilities provide flexibility for vessels adapting to changing cargo and environmental requirements.
- Flexible Installation – Multiple pump and system configurations allow the CLEANTRACK 1000B to be adapted to different tanker layouts and retrofit requirements.
- Improved Compliance Documentation – Data recording and retrieval functions provide useful operational records for inspection, auditing, and environmental compliance verification.
IMO & MARPOL Approved ODME System
The CLEANTRACK 1000B is approved in accordance with international maritime regulations, including:
- IMO Resolution MEPC.108(49)
- IMO Resolution MEPC.240(65)
- MARPOL Annex I Requirements
- MEPC.1/Circ.761 Rev.1 Bio-Fuel Blend Approvals
- MEPC.2/Circ.21 Additional Bio-Fuel Approvals
These approvals make the CLEANTRACK 1000B suitable for both conventional petroleum cargoes and modern bio-fuel blend operations.
CLEANTRACK 1000B ODME Technical Specifications
| Specification | Details |
|---|---|
| Measurement Range | 0 – 1000 ppm |
| Sample Flow Rate | 240 – 900 L/hr |
| Power Supply | 115/230 VAC Single Phase |
| Power Supply Options | 380/440 VAC Three Phase |
| Pneumatic Operation | Available |
| Communication | Shielded Twisted Pair Cable |
| Maximum Cable Length | Up to 120 meters |
| Hazardous Area Approval | ATEX Compliant |
| Installation Area | Hazardous Cargo Zones |
Key Features
- Advanced Oil Discharge Monitoring – Continuously monitors oil concentration in discharged ballast and slop water for reliable tanker discharge control.
- Wide Measurement Range – Provides an oil concentration measurement range of 0–1000 ppm, supporting demanding tanker and marine environmental monitoring applications.
- Detachable Measuring Cell – The smart removable measuring cell simplifies maintenance, replacement, calibration, and onboard servicing, helping reduce vessel downtime.
- Bio-Fuel Compatibility – Designed to support applicable bio-fuel blend monitoring requirements, with available upgrade options for evolving vessel operations.
- Flexible Pump Configurations – Supports different sample pump arrangements, including pneumatic and ATEX-certified electric pump configurations, depending on installation requirements.
- Data Logging & Retrieval – Provides access to operational and discharge information through LCD display, USB interface, and optional printer, supporting inspection and record-keeping requirements.
Bio-Fuel Upgrade Solutions for CLEANTRACK 1000B
To meet evolving environmental requirements, many vessels require ODME upgrades for bio-fuel cargo monitoring.
Swift Marine Tech Services Pte Ltd provides:
- CLEANTRACK 1000B software upgrades
- Bio-fuel monitoring enhancements
- CPU PCB replacement
- Printer conversion and replacement solutions
- System modernization packages
- Compliance upgrade support
These upgrades help extend equipment life while maintaining regulatory compliance.
Advanced Data Logging & Record Management

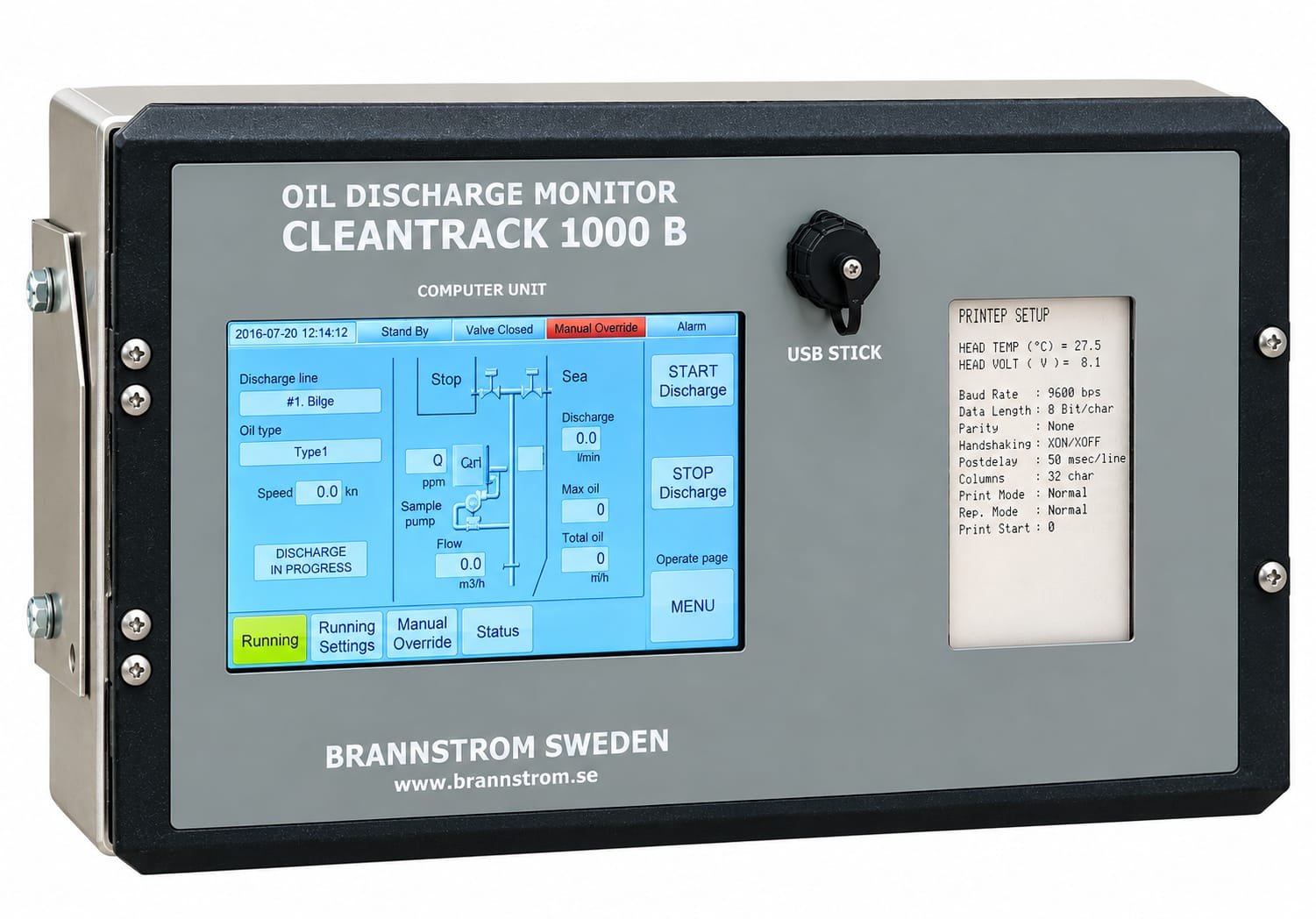

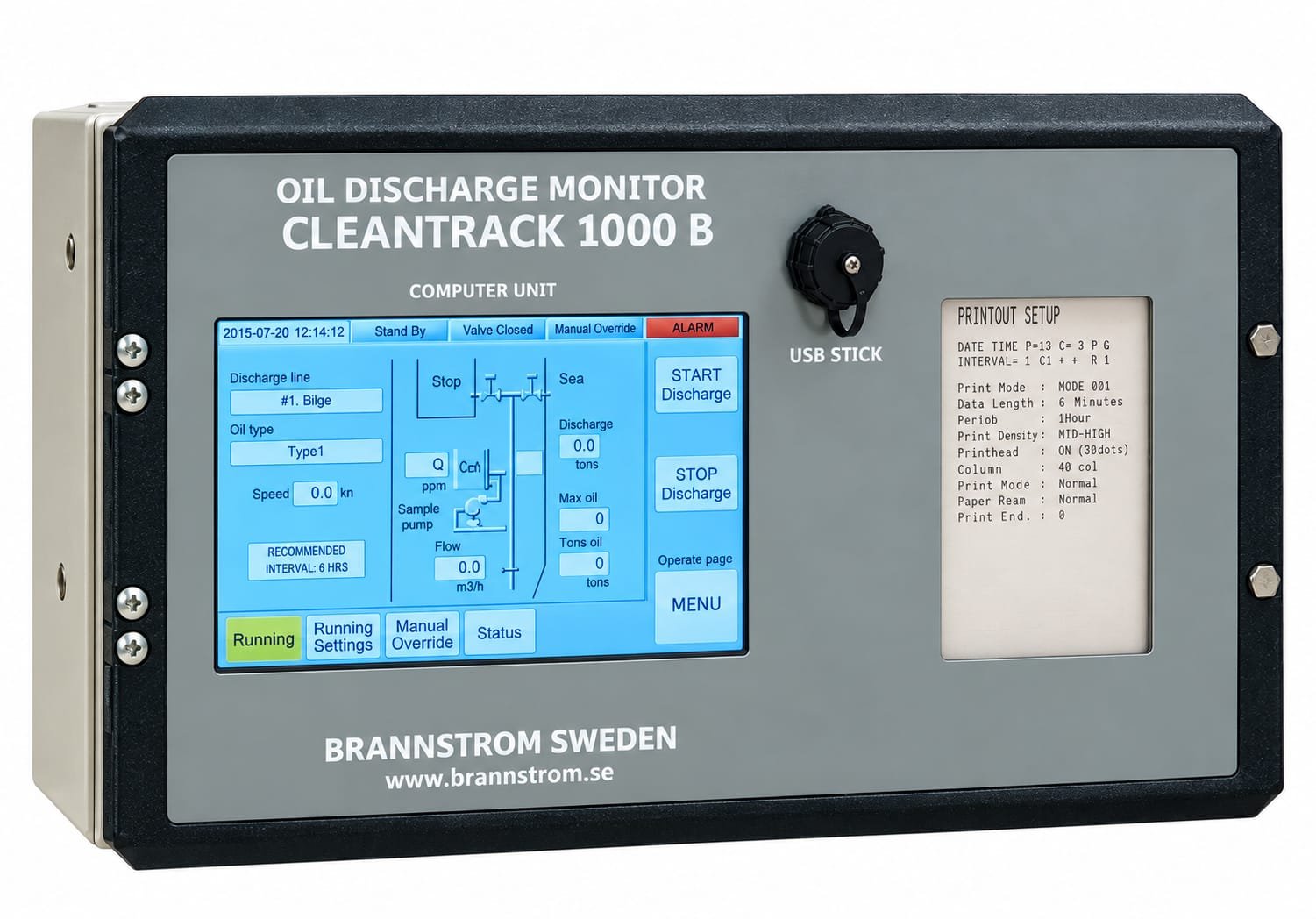

Operational and discharge data can be accessed through:
- LCD Display Interface
- USB Data Export
- Optional Paper Printer
- Electronic Data Storage
This ensures accurate record keeping for audits, inspections, and environmental reporting.
Get in Touch
Looking for CLEANTRACK 1000B ODME supply, installation, or service support?
Contact Swift Marine Tech Services Pte Ltd for expert assistance, genuine products, and reliable marine solutions tailored to your vessel requirements in UK Region.
CLEANTRACK 1000B – Reliable MARPOL Compliance Solution
The CLEANTRACK 1000B Oil Discharge Monitoring Equipment (ODME) is an advanced monitoring and control system that continuously measures the oil content in discharged ballast water and slop water during tanker operations. The system automatically monitors oil concentration levels and controls overboard discharge to ensure compliance with international environmental regulations.
When oil content exceeds allowable discharge limits, the system automatically diverts the flow back to the slop tank, preventing illegal discharges and protecting the marine environment.
The CLEANTRACK 1000B system typically consists of:

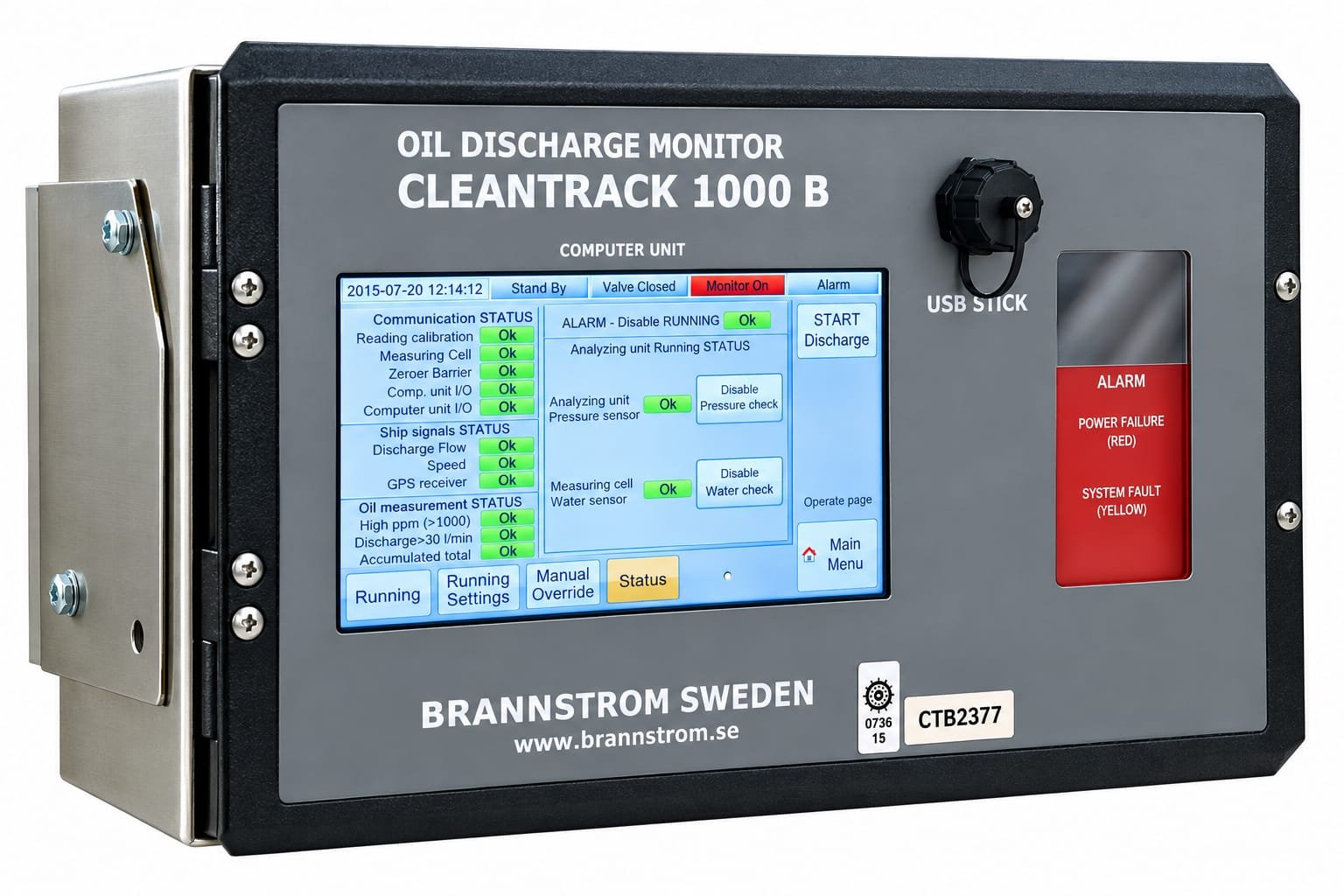

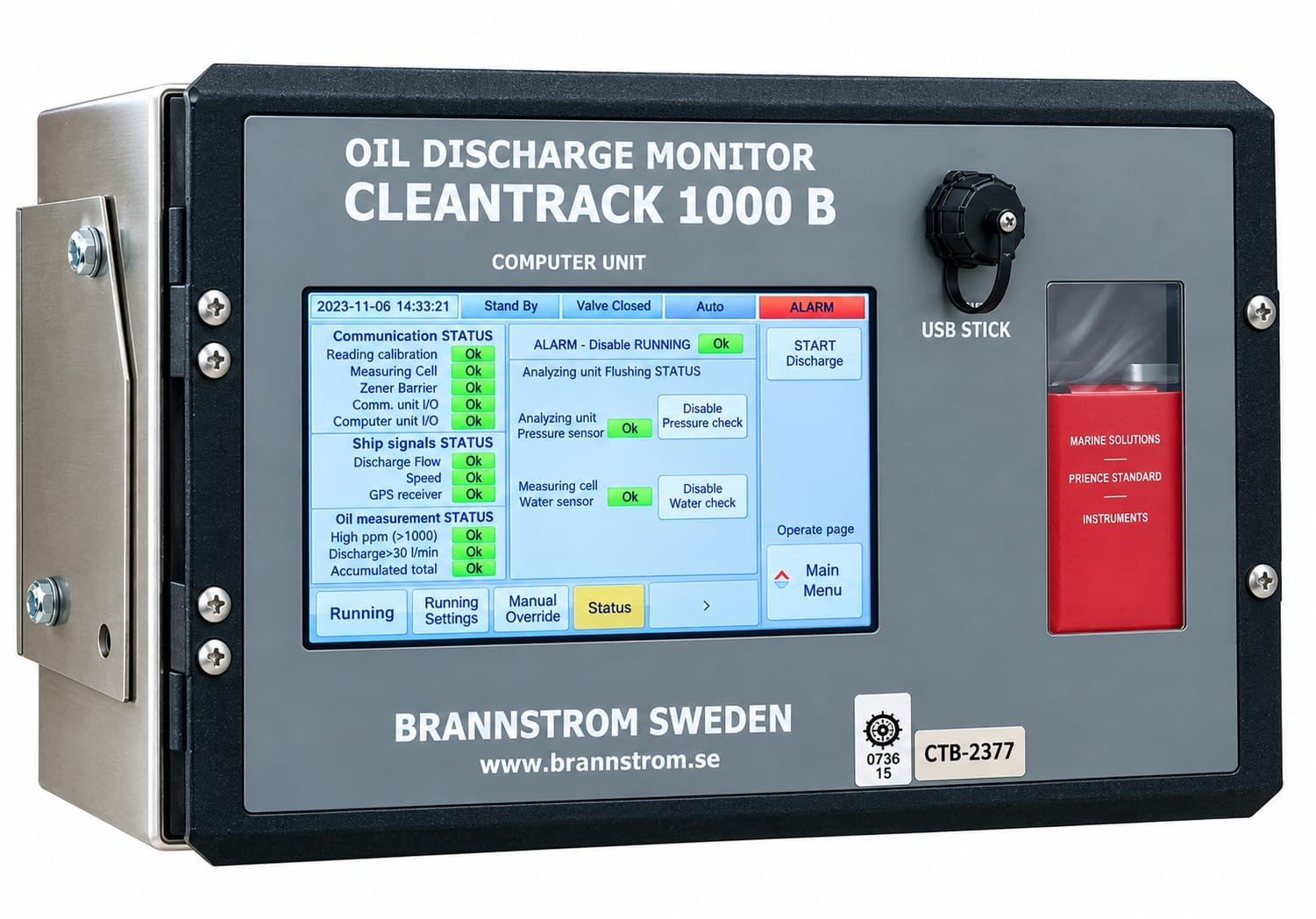

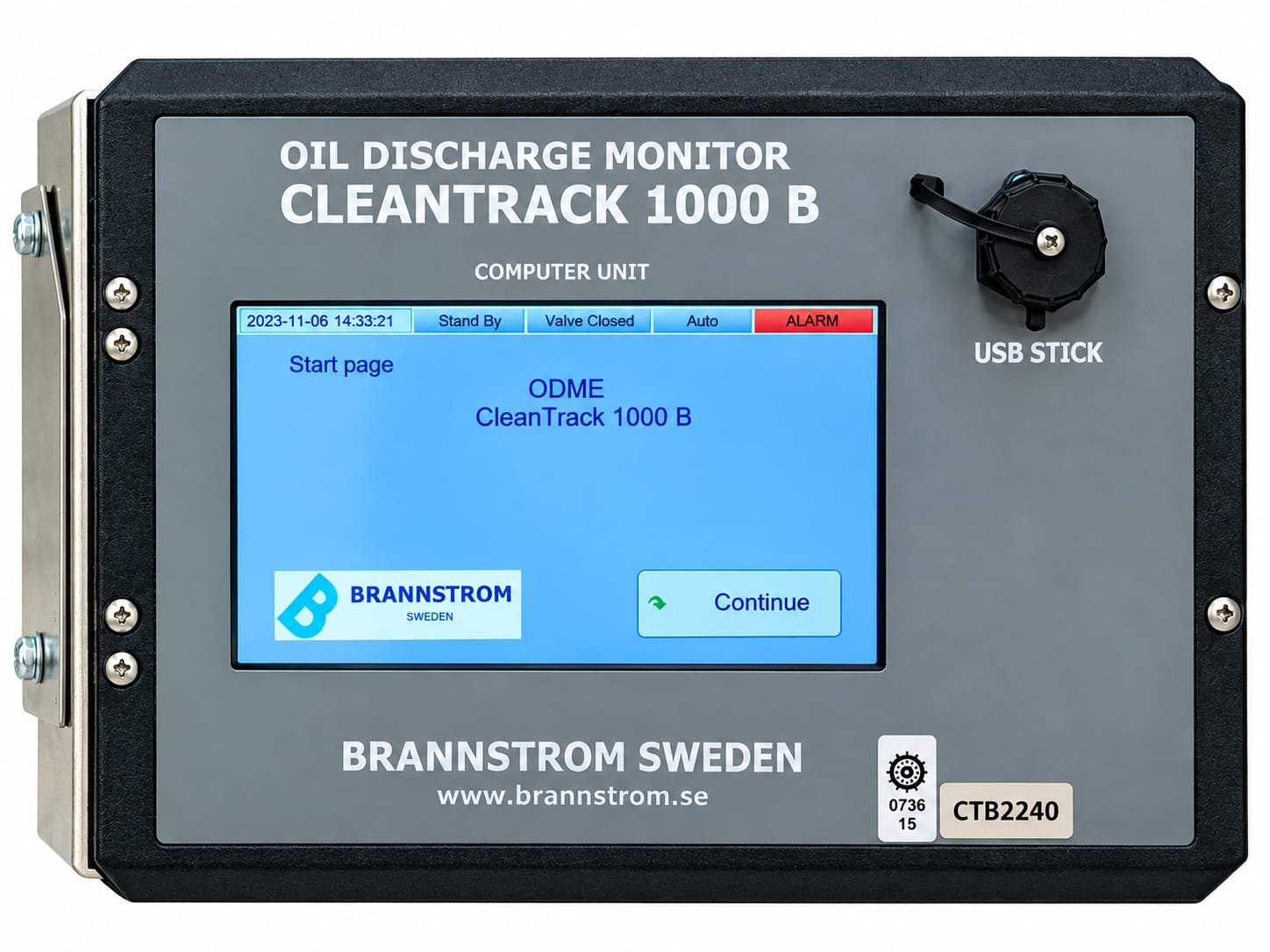

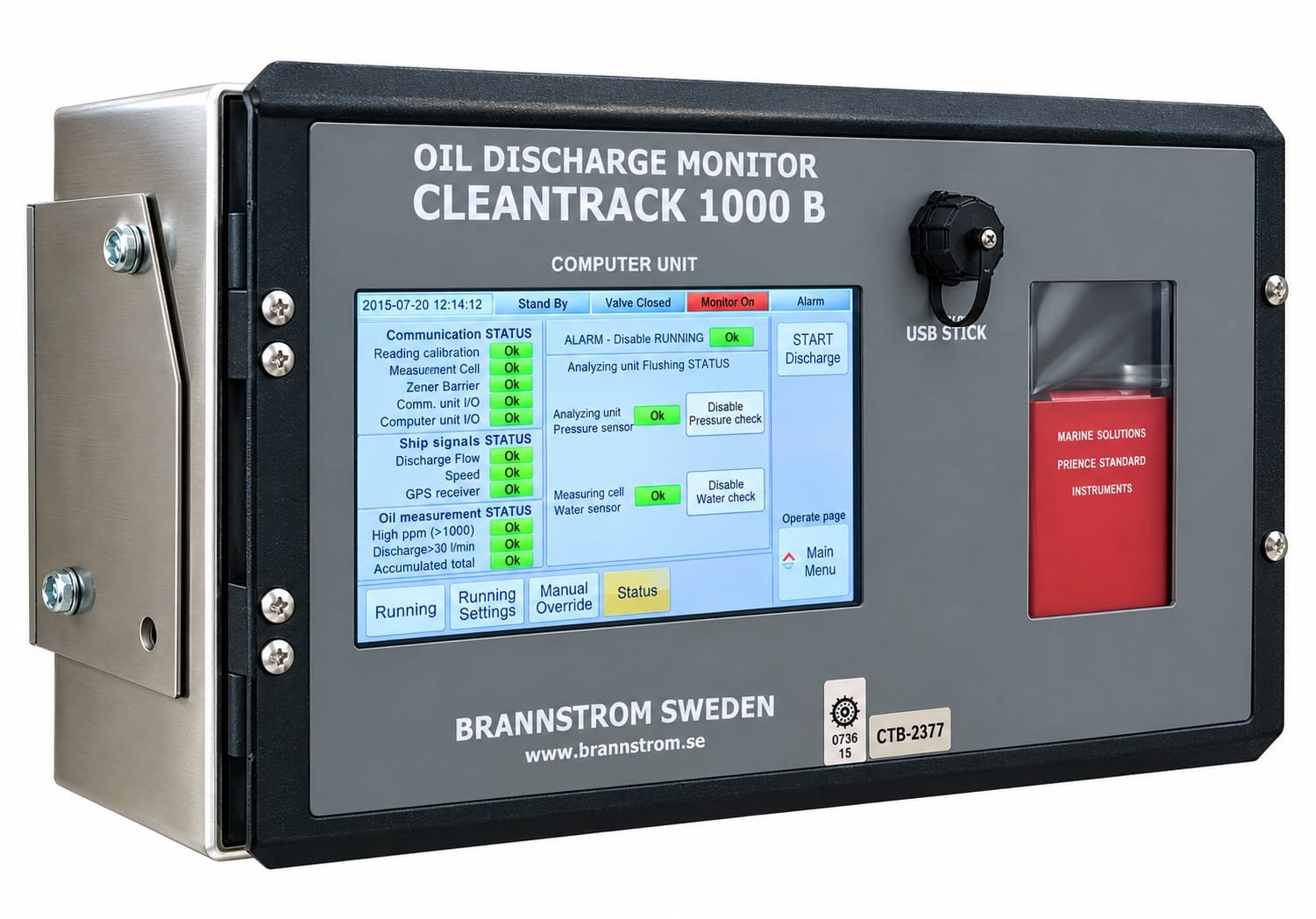

- Display and Computer Unit
- Oil Content Analysing Unit
- Converting Unit
- Measuring Cell
- Sample Pump Assembly
- Control Valves and Monitoring Components
The fully automated system records operational data and discharge information for inspection and compliance verification.
